Re: Help with high swr on wire diapole 11 mtrs

Post by Dragonfly » 06 May 2016, 10:48

30 degree Inverted V dipole is usually around 2 inches shorter each side than a straight dipole .

original45
Super Member
Super Member
Posts: 400
Joined: 31 Jul 2013, 21:11
Call Sign: 45

Re: Help with high swr on wire diapole 11 mtrs

Post by original45 » 06 May 2016, 10:59

Thank you will bear this in mind. I tried it between 30&40 degree no real diff in swr.

User avatar
Buick Mackane
Legend
Legend
Posts: 7112
Joined: 21 Aug 2012, 17:30
Location: A Country Called Scotland

Re: Help with high swr on wire diapole 11 mtrs

Post by Buick Mackane » 06 May 2016, 11:01

you sure your SWR meter is accurate?

User avatar
Dragonfly
Top Poster
Top Poster
Posts: 1192
Joined: 03 Nov 2010, 16:38
Call Sign: 26TM363
Location: Hartlepool UK

Re: Help with high swr on wire diapole 11 mtrs

Post by Dragonfly » 06 May 2016, 11:06

My 2 simple wire dipoles , 1 with a small balun and soldered direct to the coax , the other has no balun and the coax is conected to the wires by a electrical conector .
You do not have the required permissions to view the files attached to this post.

original45
Super Member
Super Member
Posts: 400
Joined: 31 Jul 2013, 21:11
Call Sign: 45

Re: Help with high swr on wire diapole 11 mtrs

Post by original45 » 06 May 2016, 11:27

Sorted it guys. The link posted re folding bac wires was it.
Once I unfolded the ends at base of legs and taped them straight ,simular at feed end calibrated swr keyed up on half power 1.5 on channel 20.
So the basics of what I've got works . Just had a radio report well over 10 miles away so I'm nearly their.
Gonna wind a Balun ,cut new wire and re trim as I may be a tad short but will ry and trim it a tad more first now I have no folds back along wire .
Nearly well happy .
Will update once new wire added.
Couldn't have got this far without your input guys. Much appreciate your help,links and advices.

Dragonfly ,is your Balun smaller than 6 coils of coal 5/6" dia ?.

Thanks guys .
The only thing now I'm confused on is my feed . How do you take into account the two wires how they connect re solder to the back of s o plug . As one goes through the 4 holes soldered around back on itself the other soldered to the pin in centre ,surely this will be a miss match on exact equal lengths .

User avatar
Admiral
Legend
Legend
Posts: 10001
Joined: 08 Mar 2011, 21:20
Call Sign: 26TM157
Location: MK-UK

Re: Help with high swr on wire diapole 11 mtrs

Post by Admiral » 06 May 2016, 11:31

Well done, you now have a half wave dipole that is shittier in performance than a DV27 on a biscuit tin.
Winner of the 2017 IBTL 'Summer Sizzler' competition

User avatar
Dragonfly
Top Poster
Top Poster
Posts: 1192
Joined: 03 Nov 2010, 16:38
Call Sign: 26TM363
Location: Hartlepool UK

Re: Help with high swr on wire diapole 11 mtrs

Post by Dragonfly » 06 May 2016, 11:45

Shittier but a lot cheaper , Cant remember the last time i came across a DV27 there all in landfill these days .

My ballun is to small really at around 3 ins diamiter , SWR is ok at 4 wats but sky high at 25 wats

User avatar
Admiral
Legend
Legend
Posts: 10001
Joined: 08 Mar 2011, 21:20
Call Sign: 26TM157
Location: MK-UK

Re: Help with high swr on wire diapole 11 mtrs

Post by Admiral » 06 May 2016, 11:49

Dipoles are for receiving not transmitting, they are the de facto for electrical theory, but in reality below 50mhz they are crap.
Winner of the 2017 IBTL 'Summer Sizzler' competition

User avatar
Dragonfly
Top Poster
Top Poster
Posts: 1192
Joined: 03 Nov 2010, 16:38
Call Sign: 26TM363
Location: Hartlepool UK

Re: Help with high swr on wire diapole 11 mtrs

Post by Dragonfly » 06 May 2016, 12:04

True , mine are used with my spare sidebanders to listen to SSB and AM ,,My vertical dose all the TX .

User avatar
Buick Mackane
Legend
Legend
Posts: 7112
Joined: 21 Aug 2012, 17:30
Location: A Country Called Scotland

Re: Help with high swr on wire diapole 11 mtrs

Post by Buick Mackane » 06 May 2016, 12:16

Admiral wrote:Well done, you now have a half wave dipole that is shittier in performance than a DV27 on a biscuit tin.
now now how about a bit of encouragement for a wee change ? :D

User avatar
Dragonfly
Top Poster
Top Poster
Posts: 1192
Joined: 03 Nov 2010, 16:38
Call Sign: 26TM363
Location: Hartlepool UK

Re: Help with high swr on wire diapole 11 mtrs

Post by Dragonfly » 06 May 2016, 12:23

How are Beams constructed , Are they simply 2 Dipoles connected by a poll or is there more to them .

User avatar
Admiral
Legend
Legend
Posts: 10001
Joined: 08 Mar 2011, 21:20
Call Sign: 26TM157
Location: MK-UK

Re: Help with high swr on wire diapole 11 mtrs

Post by Admiral » 06 May 2016, 12:50

Dragonfly wrote:How are Beams constructed , Are they simply 2 Dipoles connected by a poll or is there more to them .
Yes, beams are a series of dipoles stacked together, some direct, some radiate and some reflect.
Winner of the 2017 IBTL 'Summer Sizzler' competition

User avatar
Buick Mackane
Legend
Legend
Posts: 7112
Joined: 21 Aug 2012, 17:30
Location: A Country Called Scotland

Re: Help with high swr on wire diapole 11 mtrs

Post by Buick Mackane » 09 May 2016, 14:24

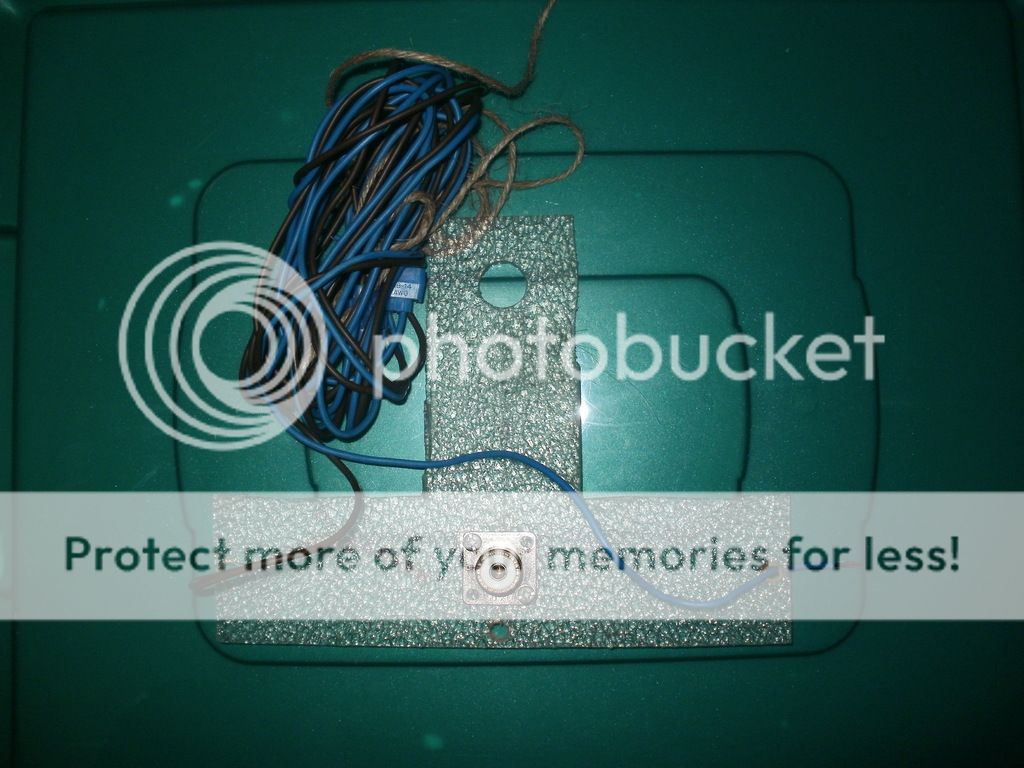

Heres my attempt, We'll see what happens when i hook it up :)


User avatar
kr0ne
Veteran
Veteran
Posts: 4536
Joined: 25 Sep 2011, 18:33

Re: Help with high swr on wire diapole 11 mtrs

Post by kr0ne » 09 May 2016, 14:43

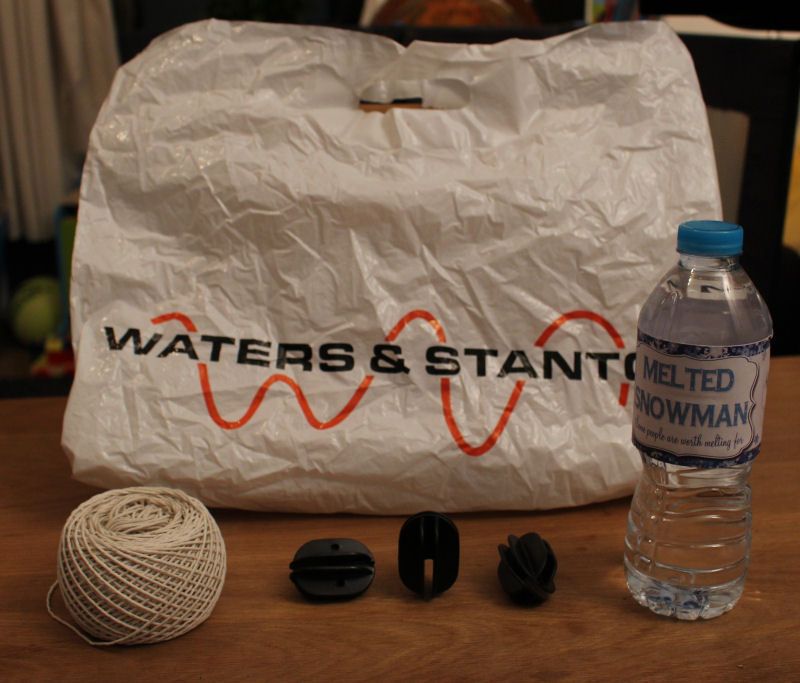

I bought a fancy DIY dipole kit from a well known amateur radio shop but it is terrible. SWR is off the scale and it receives about as well as a piece of damp string.


original45
Super Member
Super Member
Posts: 400
Joined: 31 Jul 2013, 21:11
Call Sign: 45

Re: Help with high swr on wire diapole 11 mtrs

Post by original45 » 10 May 2016, 10:21

My home made wire seems to work ok. I only manage to get the swr to 1.4 but have had a few decent contacts of over 10 miles away.
I noted swr went up the other day and I'm guessing it was due to wet weather and ground being very wet.

Wire on legs in the inverted v was far better straight with no bends back along wire ,this was critical when I swr mine.
The feed in centre of two legs is only half inch lower than tip of legs too at feed end.
This helped with my swr too.
R X is very good and clear too ,in fact I was very impressed.
Havnt tried it vertical or horizontal.
Tips of legs are only roughly 11" of the ground too in v formation.

Havnt made a Balun yet ,awaiting new coax and I'm going to make a second wire and be more exacting in lengths to see if I can improve on swr next time.

Thanks again chaps for the links , advice and offers .
Nice to see the home made wires too.
